1979 Imperial Valley-06, El Centro Array #5

Ground motion information:

NGA Record Sequence Number 180

Magnitude = 6.5
Closest Distance = 4 km
Hypocentral Distance = 29.53 km
Vs30 = 206 m/s
Mechanism = Strike slip

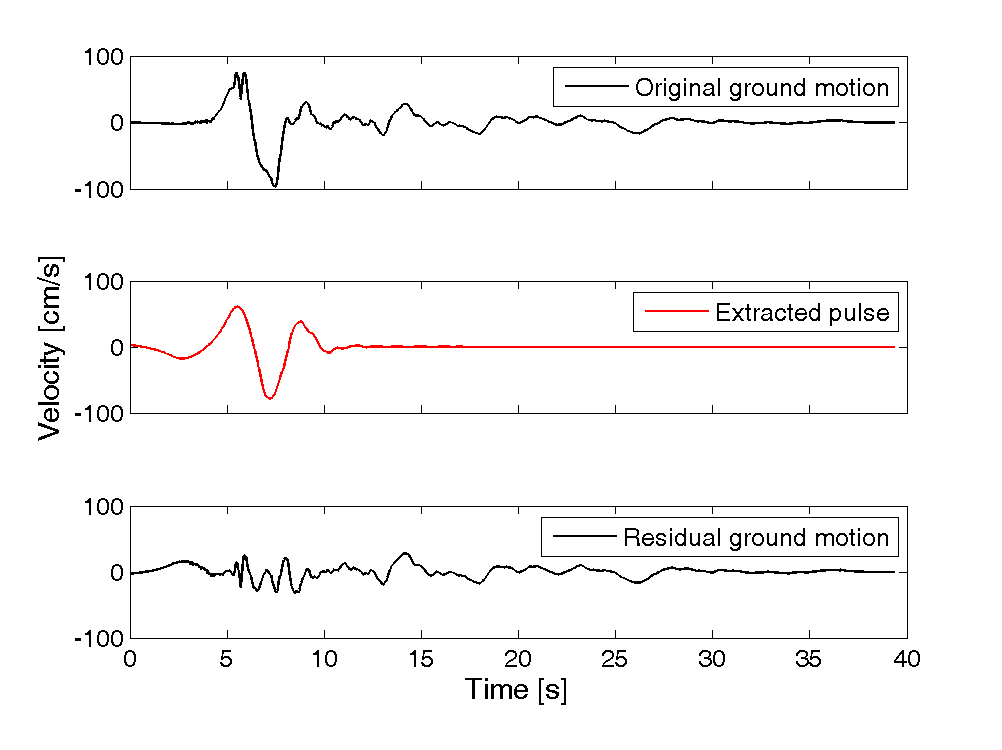

T_p = 4.13 s
PGV = 96.5 cm/s

Orientation of strongest pulse, relative to north = 228 degrees
Orientation of strongest pulse, relative to fault parallel = 85 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

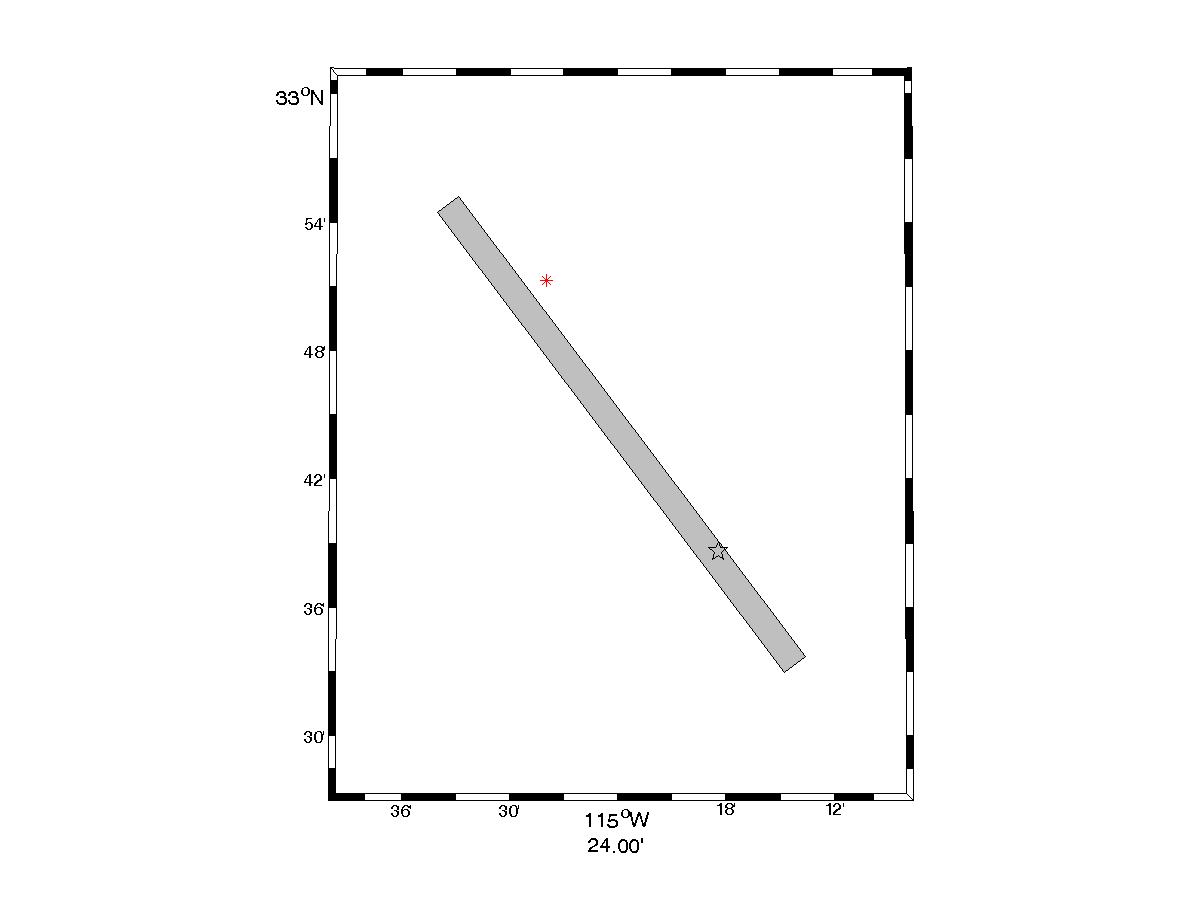

Directivity parameters:

X = 0.55
s = 27.71 km
θ = 4.7

Y = 0.72
d = 9.42 km
φ = 22.8

IDP = 3.04
Rowshandel parameter = 0.1
