1979 Imperial Valley-06, El Centro Array #7

Ground motion information:

NGA Record Sequence Number 182

Magnitude = 6.5
Closest Distance = 0.6 km
Hypocentral Distance = 29.38 km
Vs30 = 211 m/s
Mechanism = Strike slip

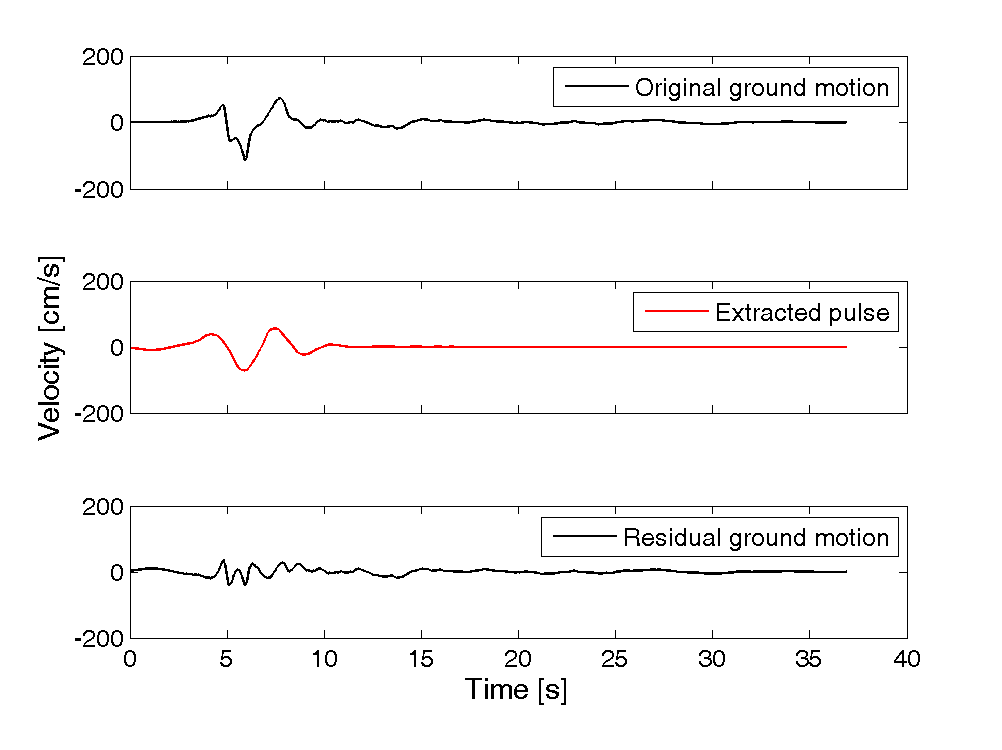

T_p = 4.38 s
PGV = 111.9 cm/s

Orientation of strongest pulse, relative to north = 56 degrees
Orientation of strongest pulse, relative to fault parallel = 87 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

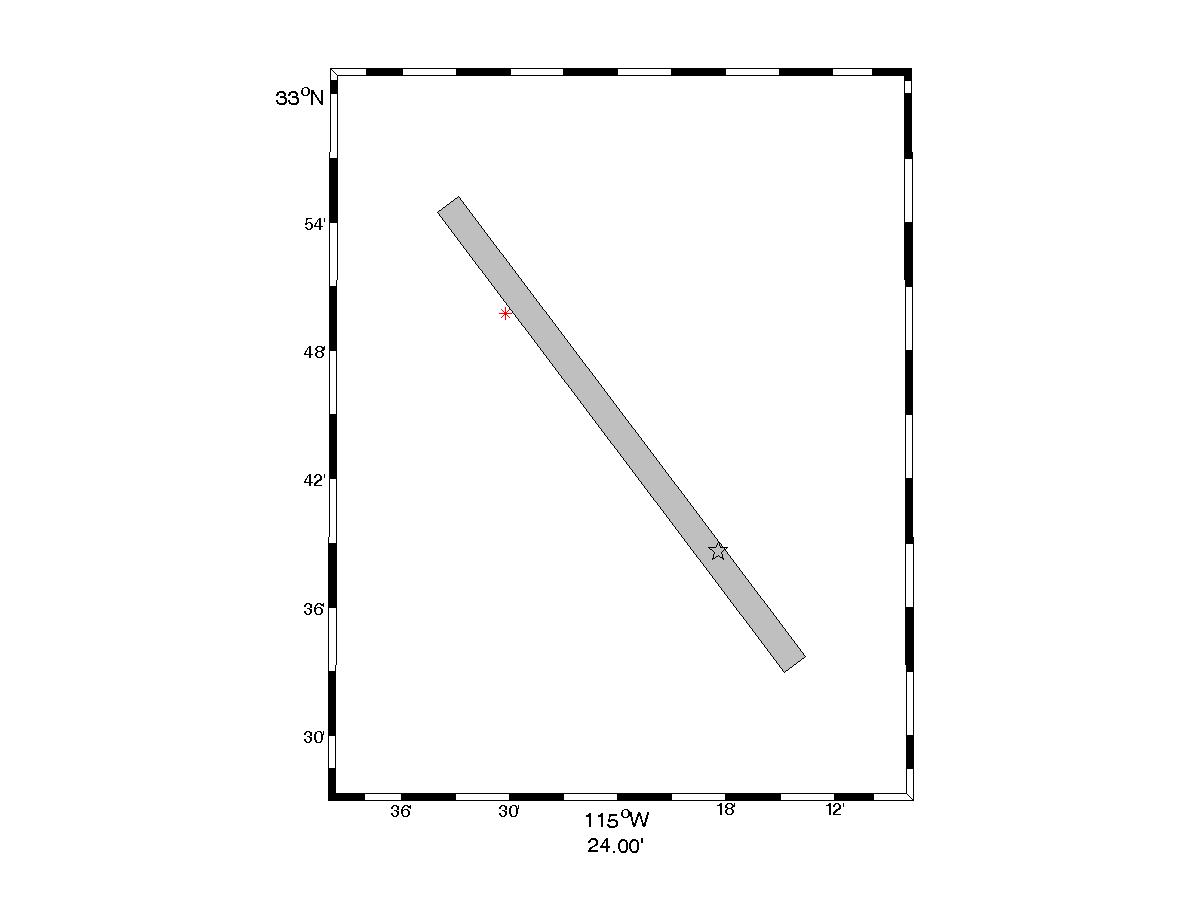

Directivity parameters:

X = 0.55
s = 27.54 km
θ = 4.8

Y = 0.78
d = 10.11 km
φ = 3.1

IDP = 3.11
Rowshandel parameter = 0.1
