1999 Chi-Chi, Taiwan, TCU053

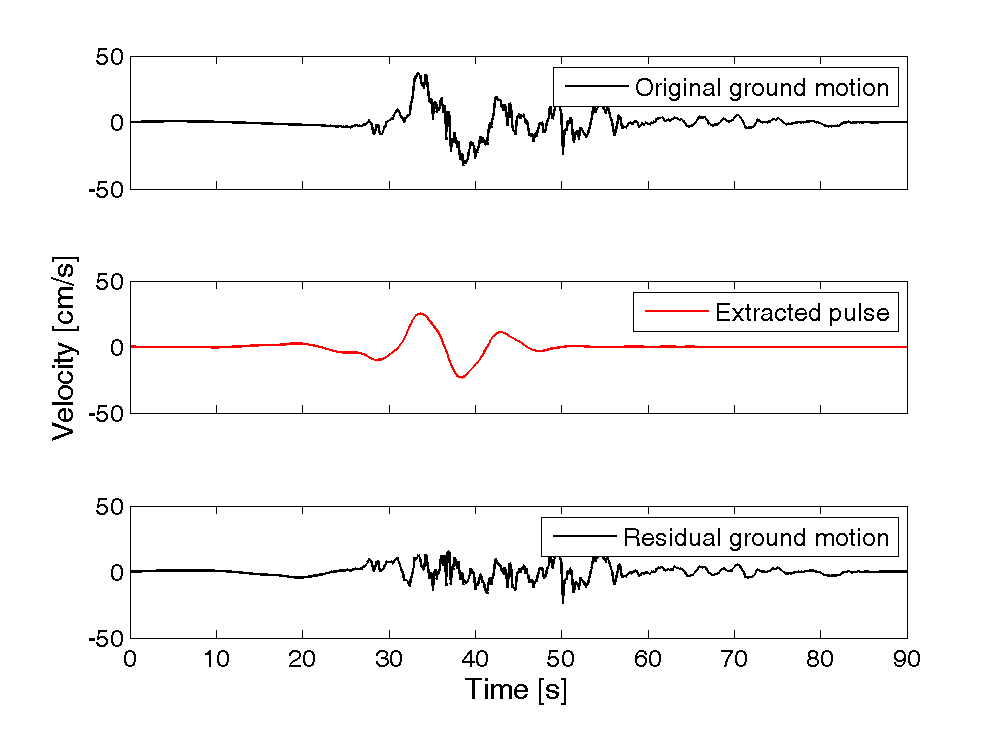

Plots of original ground motion, extracted pulse, and residual ground motion:

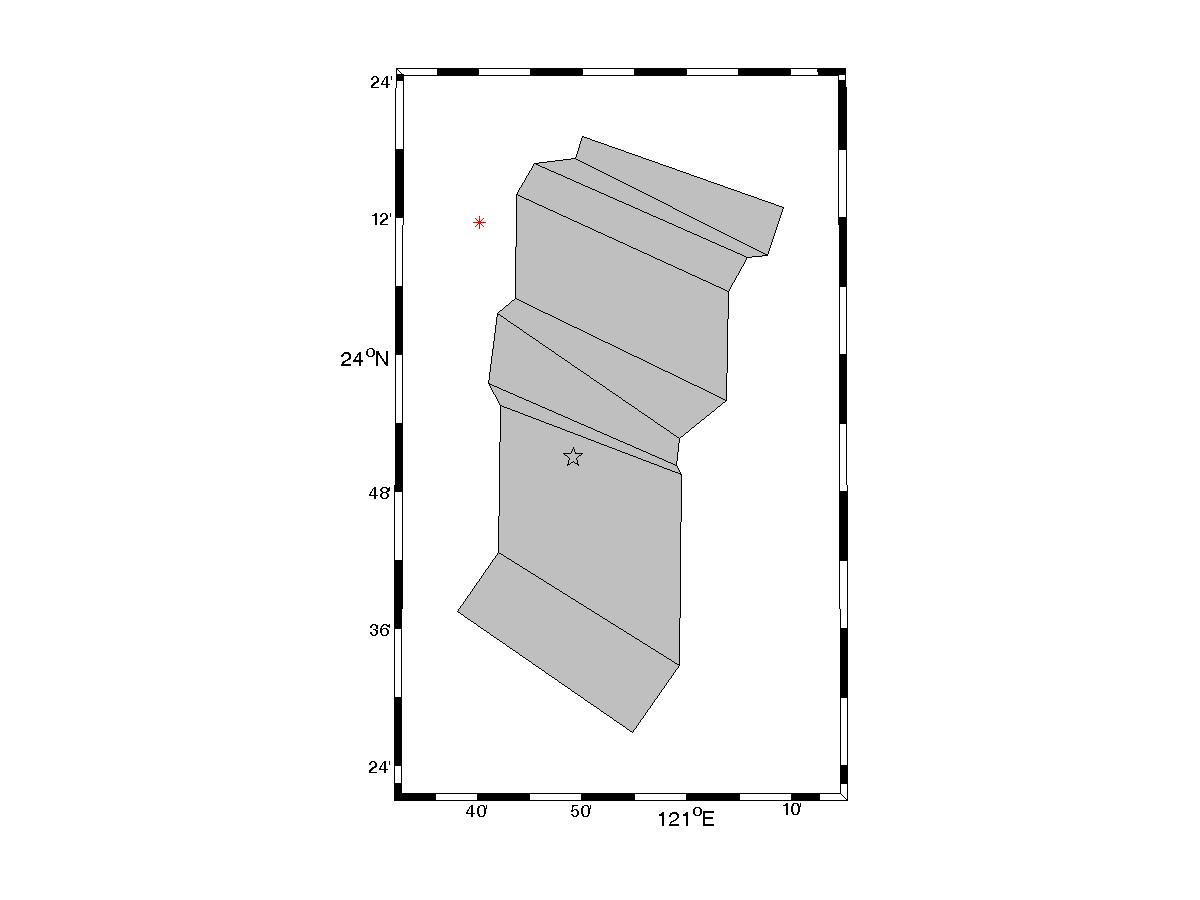

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 1493

Magnitude = 7.6
Closest Distance = 6 km
Hypocentral Distance = 41.97 km
Vs30 = 455 m/s
Mechanism = Reverse-oblique

T_p = 13.12 s
PGV = 37.1 cm/s

Orientation of strongest pulse, relative to north = 83 degrees
Orientation of strongest pulse, relative to fault parallel = 75 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.4
s = 36.16 km
θ = 43

Y = 0.4
d = 14.8 km
φ = 12.3

IDP = 3.17
Rowshandel parameter = 0.12

Notes:

These results were computed November 1st, 2012
These results are based on the June 2012 version of the NGA West 2 database
If you have any observations, comments or requests regarding this data, please e-mail Jack Baker and Shrey Shahi
