1979 Imperial Valley-06, El Centro Array #6

Ground motion information:

NGA Record Sequence Number 181

Magnitude = 6.5
Closest Distance = 1.4 km
Hypocentral Distance = 29.22 km
Vs30 = 203 m/s
Mechanism = Strike slip

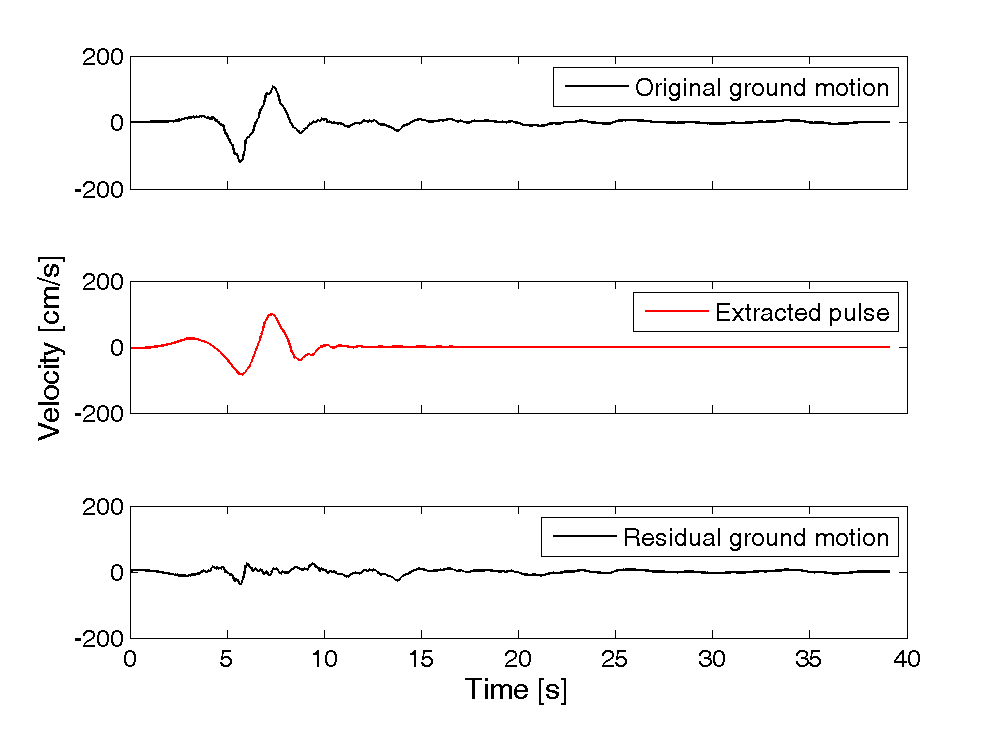

T_p = 3.77 s
PGV = 121.6 cm/s

Orientation of strongest pulse, relative to north = 71 degrees
Orientation of strongest pulse, relative to fault parallel = 72 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

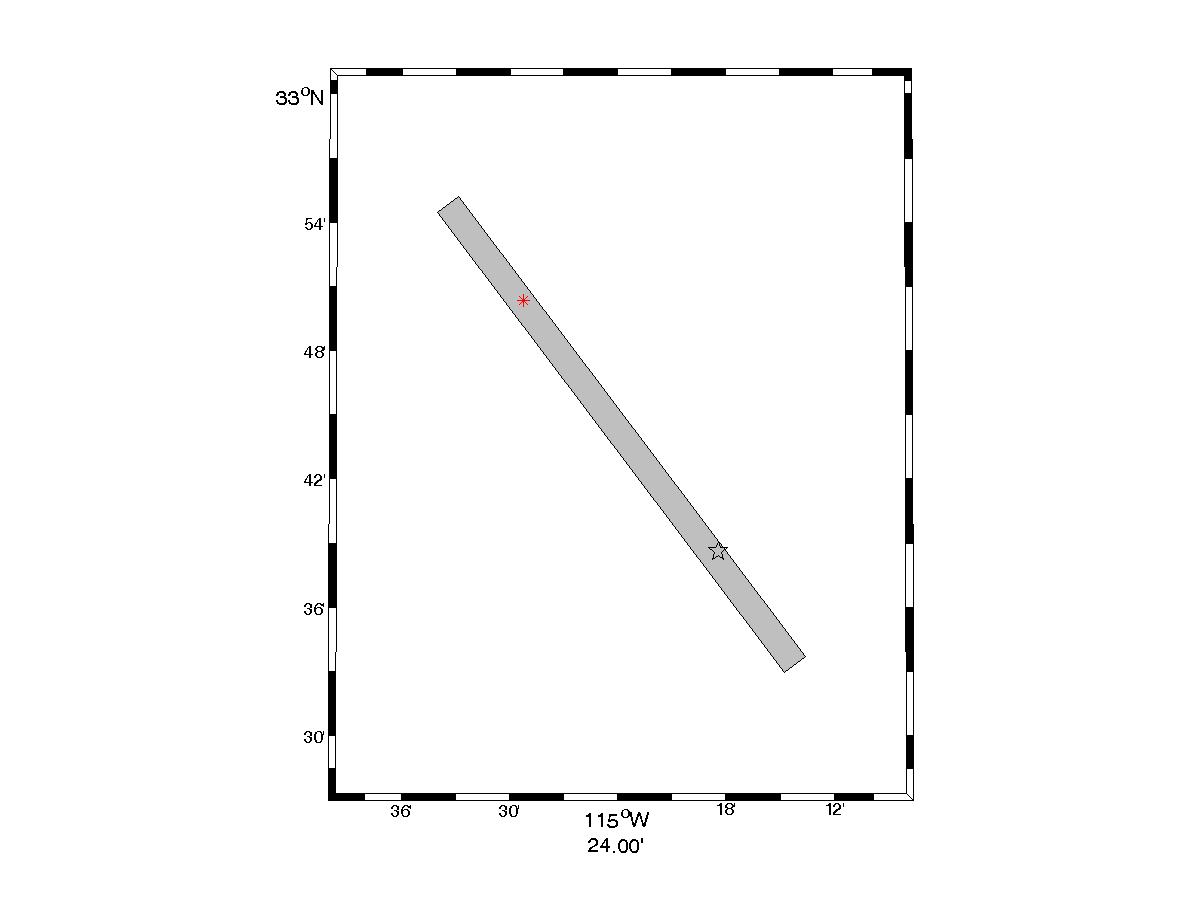

Directivity parameters:

X = 0.55
s = 27.47 km
θ = 0.8

Y = 0.76
d = 9.87 km
φ = 7.9

IDP = 3.1
Rowshandel parameter = 0.1
