1999 Chi-Chi, Taiwan-06, TCU078

Ground motion information:

NGA Record Sequence Number 3473

Magnitude = 6.3
Closest Distance = 11.5 km
Hypocentral Distance = 24.04 km
Vs30 = 443 m/s
Mechanism = Reverse-oblique

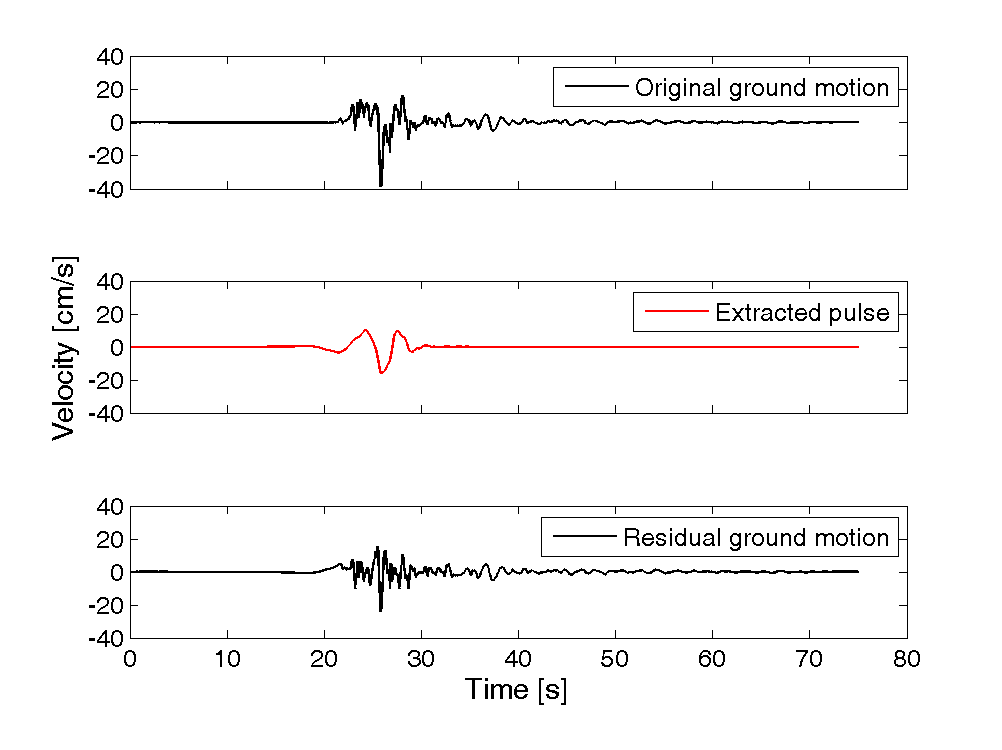

T_p = 4.15 s
PGV = 38.4 cm/s

Orientation of strongest pulse, relative to north = 288 degrees
Orientation of strongest pulse, relative to fault parallel = 77 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.27
s = 7.88 km
θ = 64

Y = 0.6
d = 12.01 km
φ = 14.8

IDP = 2.17
Rowshandel parameter = 0.33
