1983 Coalinga-05, Transmitter Hill

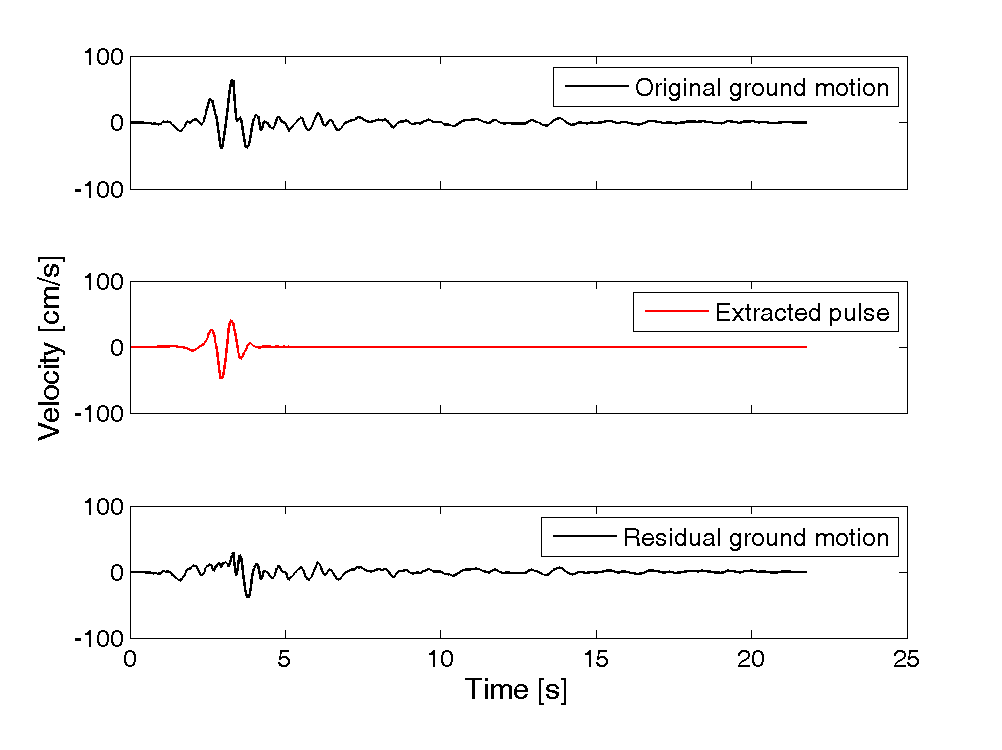

Plots of original ground motion, extracted pulse, and residual ground motion:

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 415

Magnitude = 5.8
Closest Distance = 9.5 km
Hypocentral Distance = 9.52 km
Vs30 = 390 m/s
Mechanism = Reverse-oblique

T_p = 0.88 s
PGV = 64.4 cm/s

Orientation of strongest pulse, relative to north = 242 degrees
Orientation of strongest pulse, relative to fault parallel = 67 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 0

Comments:

no comment

Directivity parameters:

X = 0.06
s = 0.37 km
θ = 86.44

Y = 0.03
d = 0.15 km
φ = 89.07

IDP = Unknown
φ = Unknown

Notes:

These results were computed November 1st, 2012
These results are based on the June 2012 version of the NGA West 2 database
If you have any observations, comments or requests regarding this data, please e-mail Jack Baker and Shrey Shahi
