1984 Morgan Hill, Coyote Lake Dam (SW Abut)

Ground motion information:

NGA Record Sequence Number 451

Magnitude = 6.2
Closest Distance = 0.5 km
Hypocentral Distance = 25.98 km
Vs30 = 540 m/s
Mechanism = Strike slip

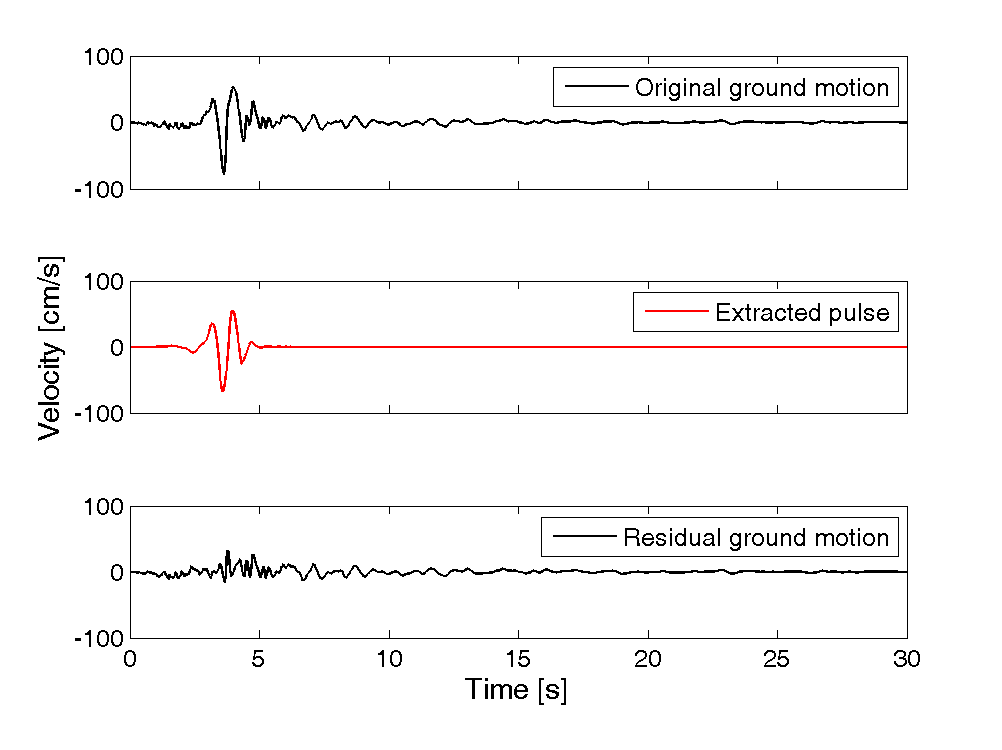

T_p = 1.07 s
PGV = 76.8 cm/s

Orientation of strongest pulse, relative to north = 114 degrees
Orientation of strongest pulse, relative to fault parallel = 34 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.91
s = 24.55 km
θ = 0.4

Y = 0.7
d = 8 km
φ = 1.2

IDP = 3.02
Rowshandel parameter = 0.66
