1989 Loma Prieta, Gilroy Array #2

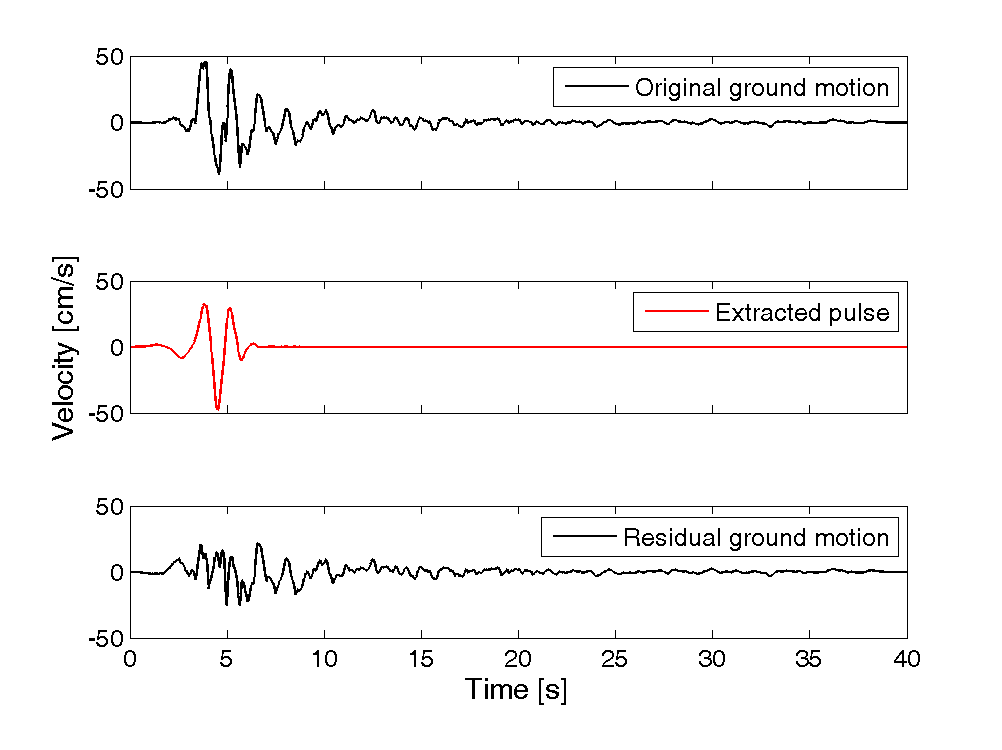

Plots of original ground motion, extracted pulse, and residual ground motion:

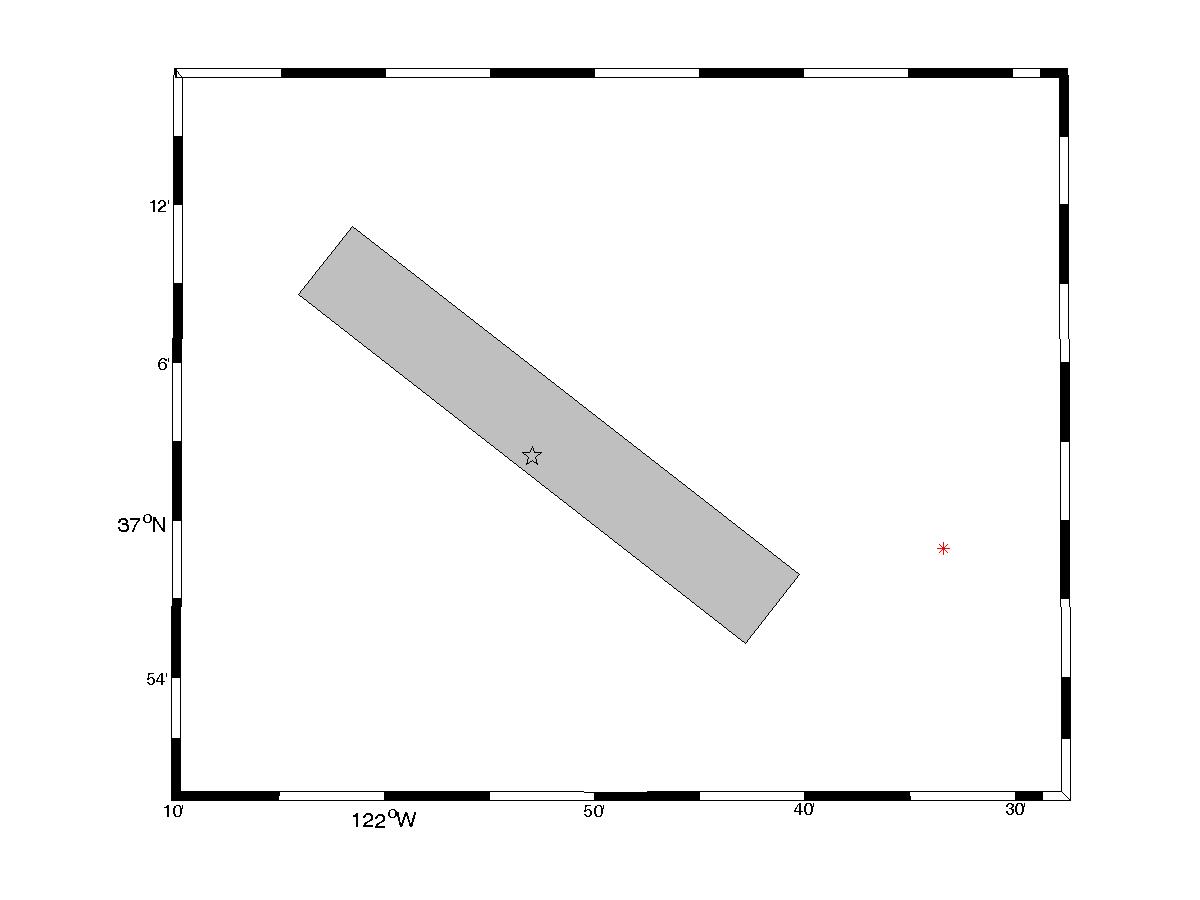

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 766

Magnitude = 6.9
Closest Distance = 11.1 km
Hypocentral Distance = 34.52 km
Vs30 = 271 m/s
Mechanism = Reverse-oblique

T_p = 1.73 s
PGV = 46.2 cm/s

Orientation of strongest pulse, relative to north = 66 degrees
Orientation of strongest pulse, relative to fault parallel = 62 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.5
s = 19.98 km
θ = 25.4

Y = 0.81
d = 14.53 km
φ = 16.2

IDP = 0.79
Rowshandel parameter = 0.16

Notes:

These results were computed November 1st, 2012
These results are based on the June 2012 version of the NGA West 2 database
If you have any observations, comments or requests regarding this data, please e-mail Jack Baker and Shrey Shahi
