1989 Loma Prieta, Gilroy Array #3

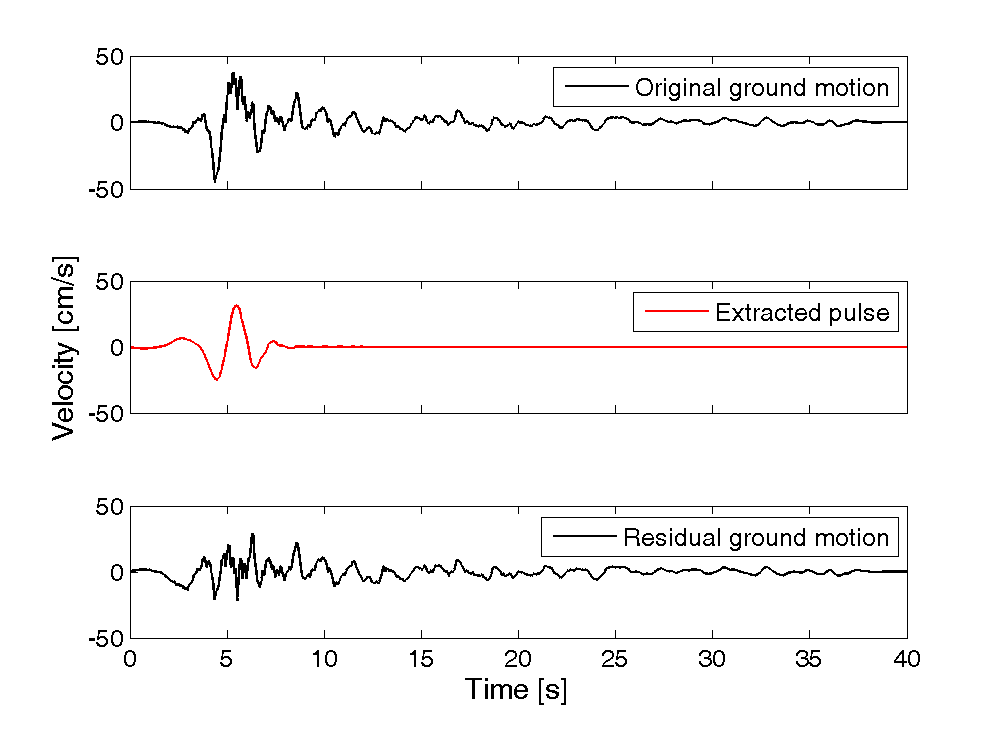

Plots of original ground motion, extracted pulse, and residual ground motion:

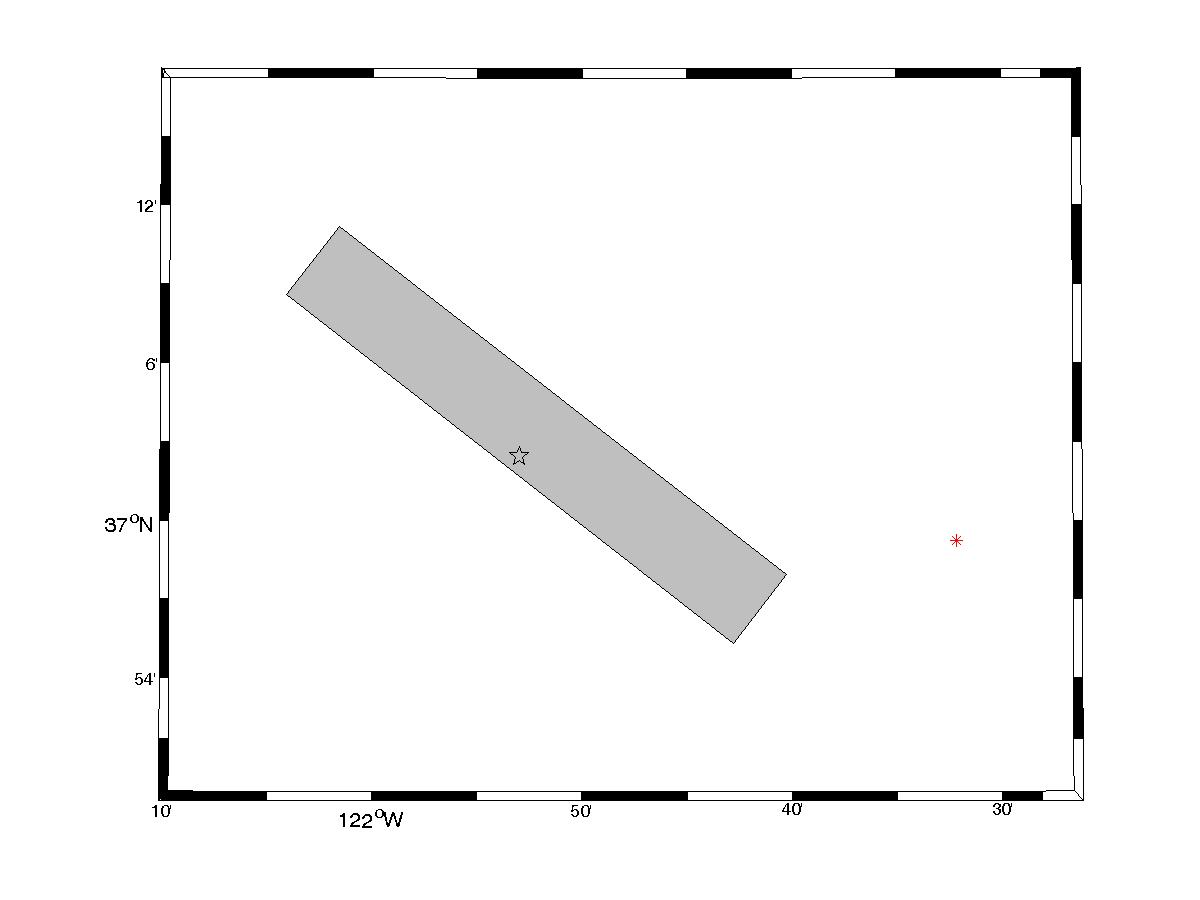

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 767

Magnitude = 6.9
Closest Distance = 12.8 km
Hypocentral Distance = 35.94 km
Vs30 = 350 m/s
Mechanism = Reverse-oblique

T_p = 2.64 s
PGV = 44.8 cm/s

Orientation of strongest pulse, relative to north = 277 degrees
Orientation of strongest pulse, relative to fault parallel = 31 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.5
s = 19.98 km
θ = 27.1

Y = 0.81
d = 14.53 km
φ = 19.3

IDP = 0.85
Rowshandel parameter = 0.15

Notes:

These results were computed November 1st, 2012
These results are based on the June 2012 version of the NGA West 2 database
If you have any observations, comments or requests regarding this data, please e-mail Jack Baker and Shrey Shahi
